Sharc Machine Company supplies various of plastic wall panel production lines including PVC wall panel making machine, PVC louver wall panel making machine, PVC Soffit panel making machine, PVC marble wall panel making machine and etc. Clients can choose machines according to their own requirements.

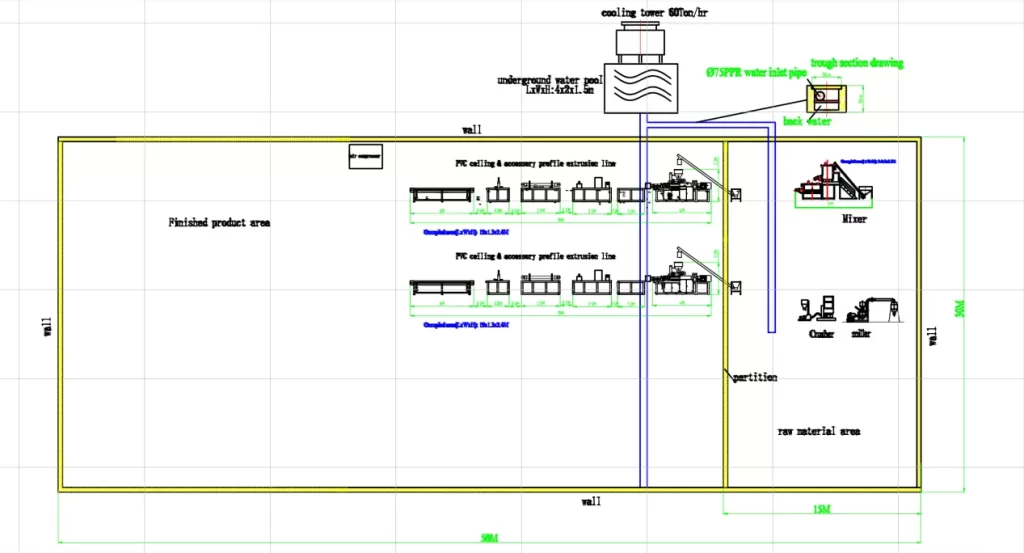

As a leading manufacturer and solution provider for wall panel machinery, our technical team offer solution from A to Z including raw materials, formulation, wall panel manufacturing machinery, layout design, engineer installation and guide, fast response after-sales etc.
Required main materials for base layer: PVC resin+calcium carbonate+additives
Required materials for surface design: PVC film + glue
Required main machines for production: PVC mixer machine+ PVC wall panel extrusion line+ Lamination machine+mold/die
Material loader ➡ PVC mixer machine ➡ vibration sieve (optional) ➡ material loader ➡ conical double screw extruder machine ➡ mold (extrusion die head + calibration mold) ➡ vacuum and calibration table ➡ haul off machine ➡ lamination machine ➡cutting machine ➡ stacker ➡ final PVC wall panel ➡ package
 |  |  |  |
Required main materials for base layer: PVC resin+calcium carbonate+additives
Required materials for surface design: PVC film + glue
Required main machines for production: PVC mixer machine+ PVC louver wall panel extrusion line+ Lamination machine+mold/die
Normally for PVC louver wall panel, we use offline lamination to get wall panel laminated. (some clients also use online lamination machine for fluted wall panel)
Material loader ➡ PVC mixer machine ➡ material loader ➡ conical double screw extruder machine ➡ mold (extrusion die head + calibration mold) ➡ vacuum and calibration table ➡ haul off machine ➡cutting machine ➡ stacker ➡ plain color PVC fluted wall panel ➡ offline lamination machine ➡ Final design fluted wall panel➡package
 |  |  |  |
Required main materials for base layer: PVC resin+calcium carbonate+additives
Required materials for surface design: 1. PVC film 2. ASA co-extrusion
Required main machines for production: PVC mixer machine+ PVC soffit panel extrusion line+ Lamination machine/co-extruder+die (mold)
Material loader ➡ PVC mixer machine ➡ material loader ➡ conical double screw extruder machine ➡ co-extruder (optional) ➡ mold (extrusion die head ) ➡ lamination machine (optional) ➡ Embossing device➡ vacuum and calibration ➡ punching for holes➡ haul off machine ➡ cutting machine ➡ stacker ➡ final PVC soffit panel ➡ package
 |  |  |  |
Required main materials for base layer: PVC resin+calcium carbonate+additives
Required materials for surface design: PVC film/PET foil
Required main machines for production: PVC mixer machine+ PVC marble sheet extrusion line+ die + UV coating machine (for high glossy&matt UV marble sheet)
Material loader ➡ PVC mixer machine ➡ material loader ➡ conical double screw extruder machine ➡ mold (extrusion die head) ➡ film lamination machine ➡ cooling stacker➡ haul off machine ➡ cutting machine ➡ Holding stacker or automatic robot ➡ PVC UV marble sheet ➡ UV coating machine for sheet ➡ protection film ➡ final PVC UV marble sheet ➡ packing
 |  |  |  |
| NO | Extruder Model | Motor (kw) | Capacity (kg/h) |
| PVC wall panel extrusion line: | |||
| 1 | 51/105 | 15/18 | 80-100 |
| 2 | 55/110 (53/128) | 22 | 120-150 |
| 3 | 65/132 (65/138) | 37/45 | 200-250 |
| 4 | 80/156 | 55 | 350-400 |
| PVC louver wall panel extrusion line: | |||
| 1 | 55/110 (53/128) | 22 | 120-150 |
| 2 | 65/132 (65/138) | 37/45 | 200-250 |
| PVC soffit panel extrusion line: | |||
| 1 | 55/110 (53/128) | 22 | 120-150 |
| 2 | 65/132 (65/138) | 37/45 | 200-250 |
| PVC marble wall panel extrusion line: | |||
| 1 | 80/156 | 75 | 400-450 |
| 2 | 92/188 | 90/110 | 700-800 |
